Fiber Laser Cutting Machines for High-Precision Sheet Metal Fabrication

STON's CNC laser cutting machines are built for manufacturers who demand consistent cut quality across mixed materials and thicknesses. With a kerf width of just 0.1mm, surface roughness ≤6.3μm, and machining accuracy of ±0.1mm, every cut delivers bend-ready edges with minimal secondary finishing. Available in single platform and exchange platform configurations, with machining areas from 3000×1500mm up to 6000×2500mm to match your production scale.

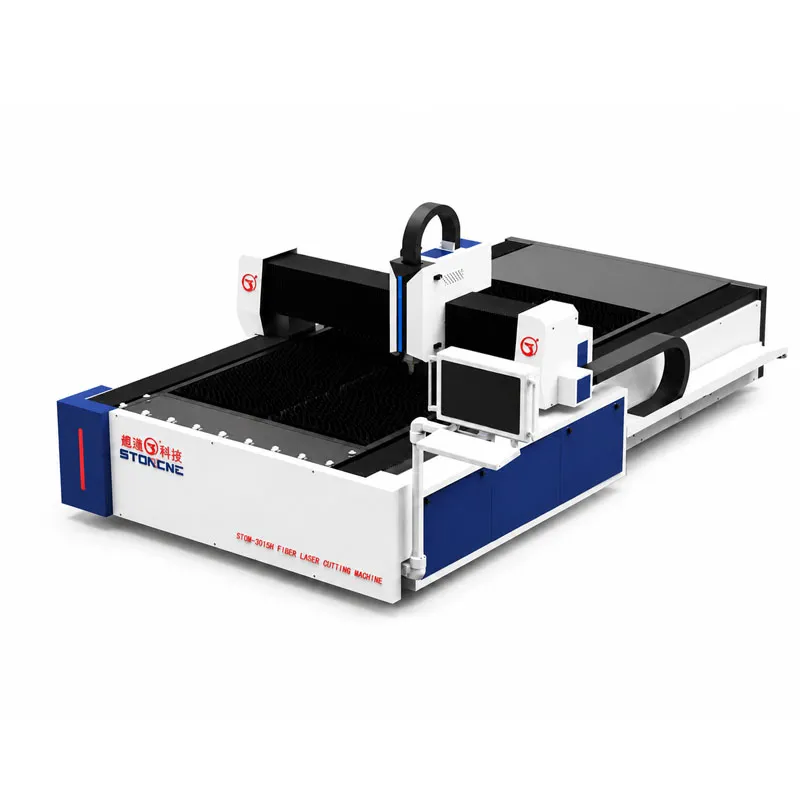

Single Table Fiber Laser Cutting Machine - detail view 01
Single Table Fiber Laser Cutting Machine - detail view 02
Double Platform Laser Cutting Machine - detail view 13
Double Platform Laser Cutting Machine - detail view 12

Precision Cutting at 150 m/min

Laser Punch Combination Machine - detail view 01

Watch our dual-exchange platform system maintain continuous cutting while loading and unloading simultaneously.

Choose the Right Laser Cutting Machine for Your Production

Built for Precision, Designed for Throughput

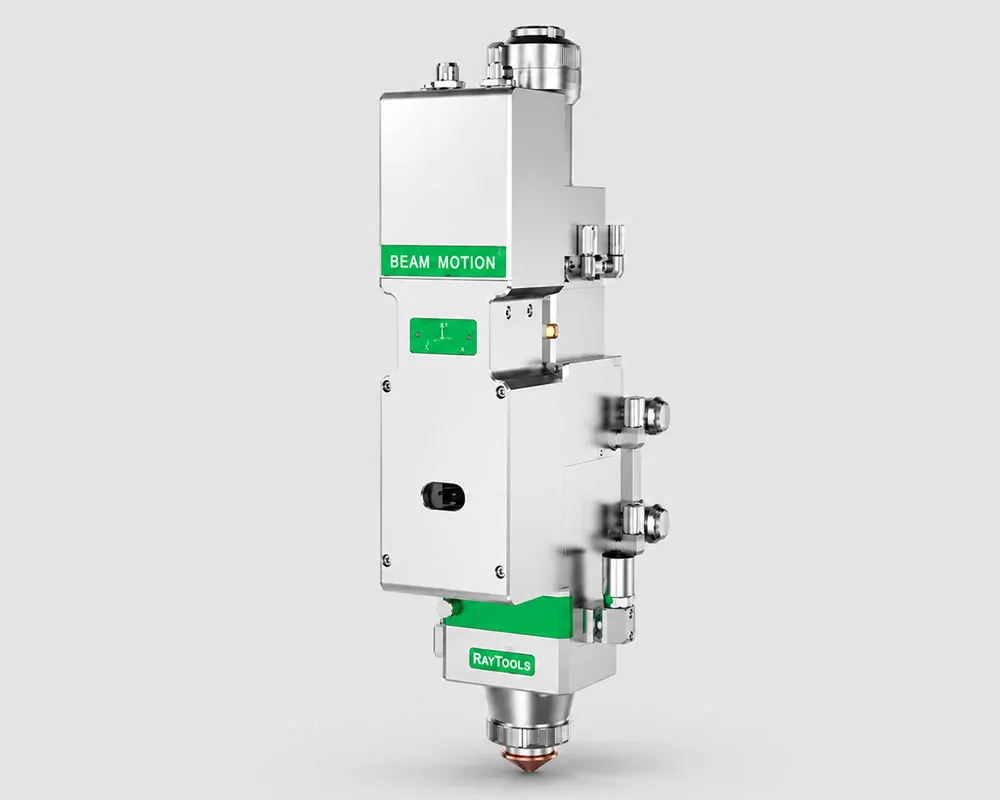

  • STON CNC Laser Cutting Machine catalog - 0.05mm positioning accuracy

    ±0.05mm Positioning Accuracy

    Both X and Y axes achieve ±0.05mm positioning accuracy and ±0.05mm repeatability, ensuring consistent cut quality across every sheet in a long production run.

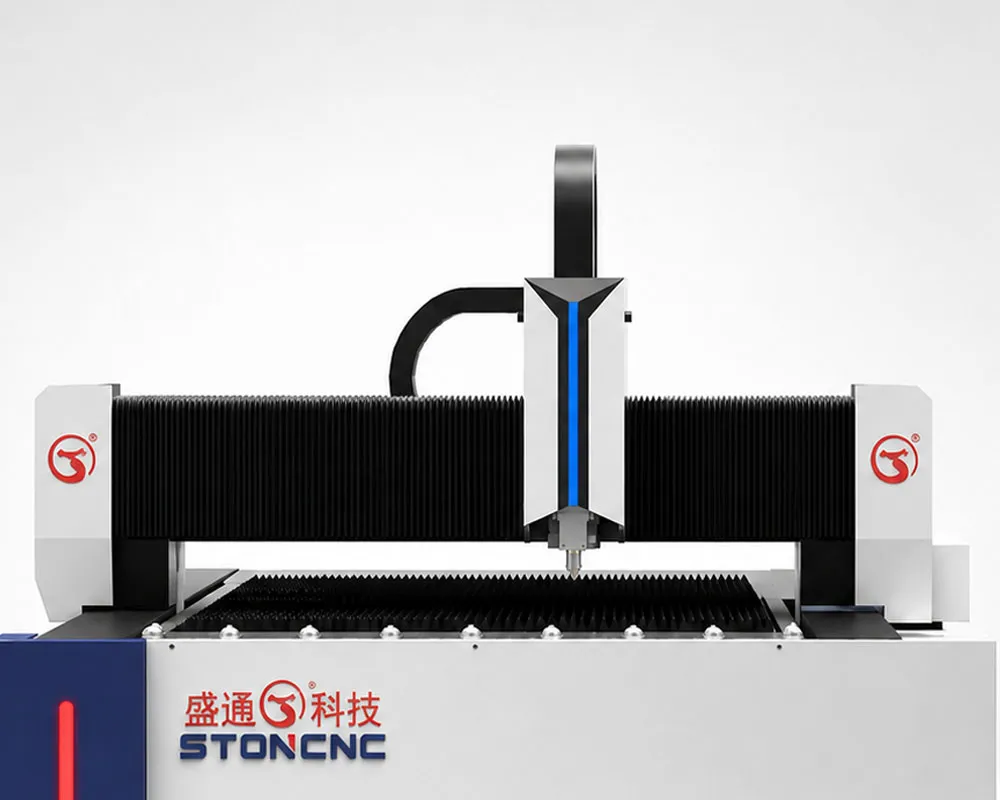

  • STON CNC Laser Cutting Machine catalog - 0.1mm kerf width

    0.1mm Kerf Width

    A narrow 0.1mm kerf minimizes material waste and delivers clean, burr-free edges that are ready for direct bending or assembly without secondary grinding.

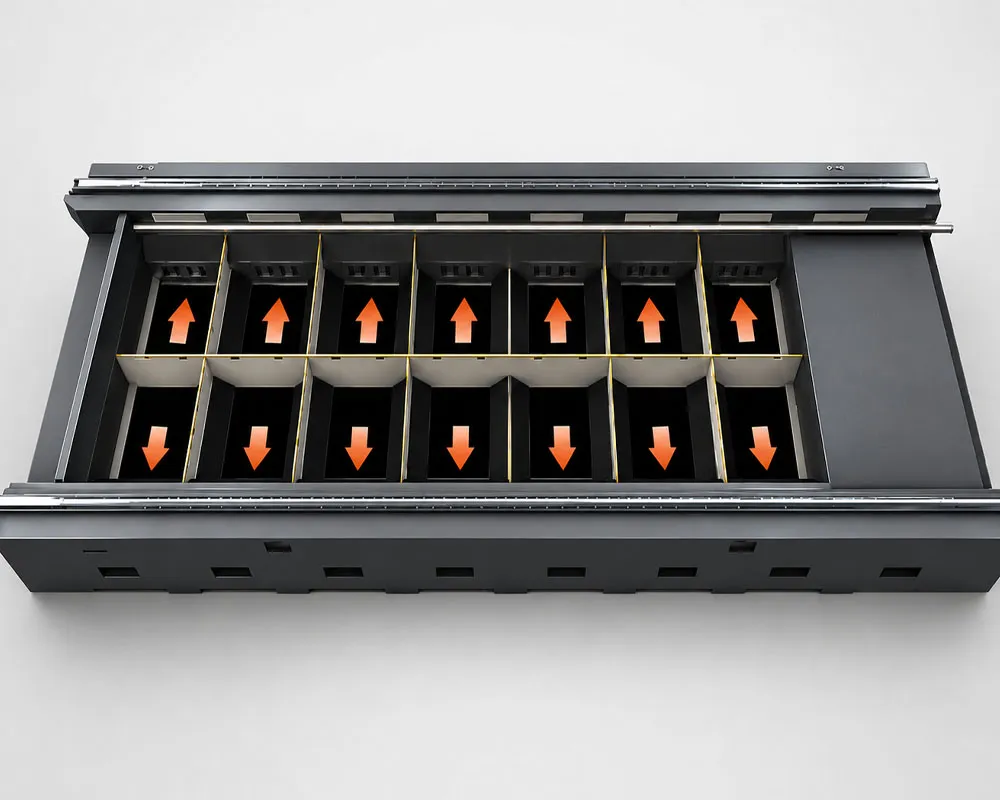

  • STON CNC Laser Cutting Machine catalog - min maximum speed

    150 m/min Maximum Speed

    X and Y axis maximum positioning speed of 150 m/min dramatically reduces non-cutting travel time, increasing overall hourly output on high-volume sheet metal runs.

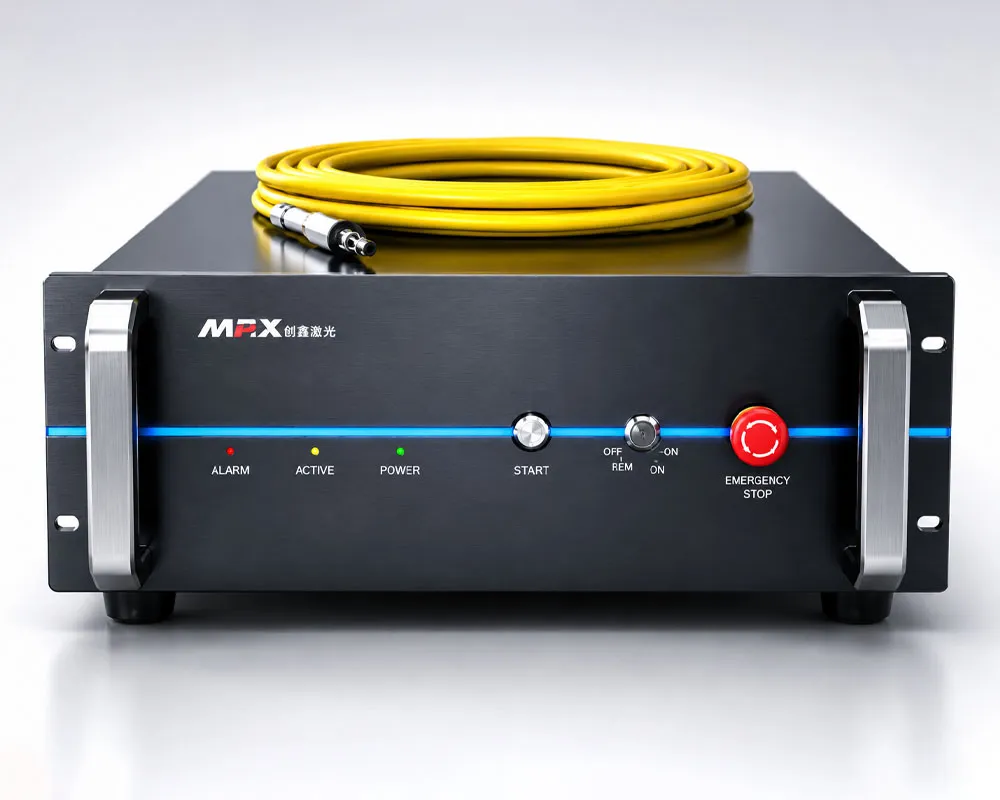

  • STON CNC Laser Cutting Machine catalog - fiber laser autofocus head

    Fiber Laser + Autofocus Head

    High beam quality fiber laser source combined with an autofocus cutting head ensures fast response, consistent focal depth across varying material thicknesses, and a fine, smooth cutting kerf.

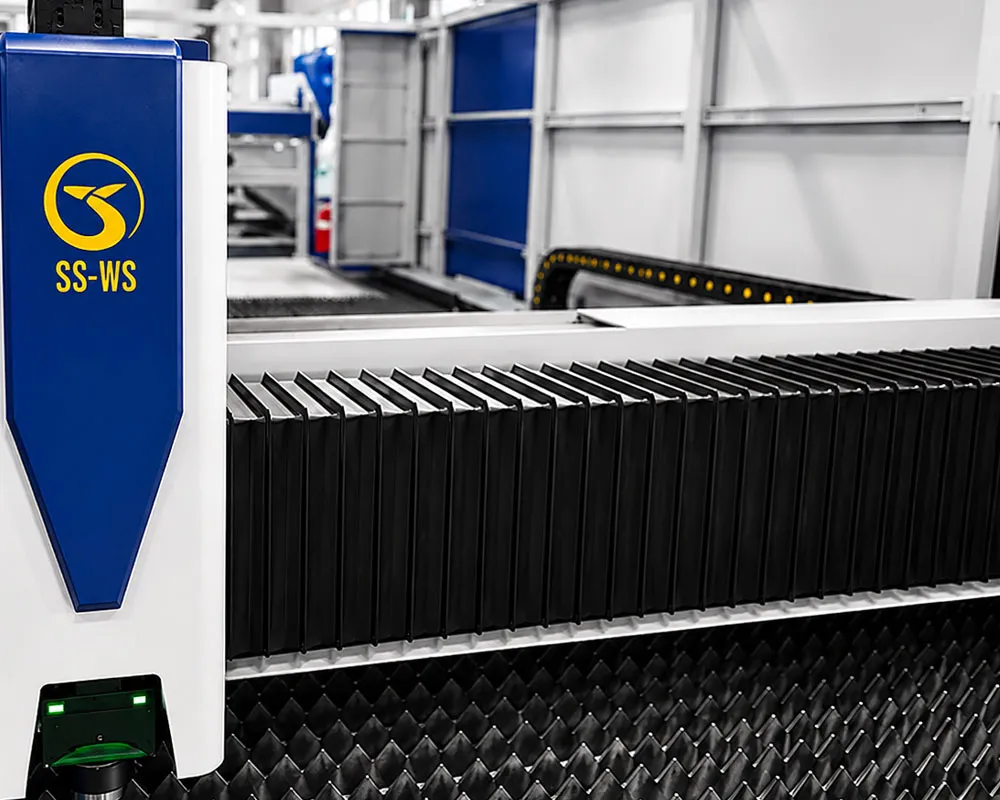

  • STON CNC Laser Cutting Machine catalog - broad material compatibility

    Broad Material Compatibility

    Cuts stainless steel, carbon steel, aluminum alloy, galvanized sheet, and other common sheet metals. Handles mixed-material production runs without manual parameter changes between sheets.

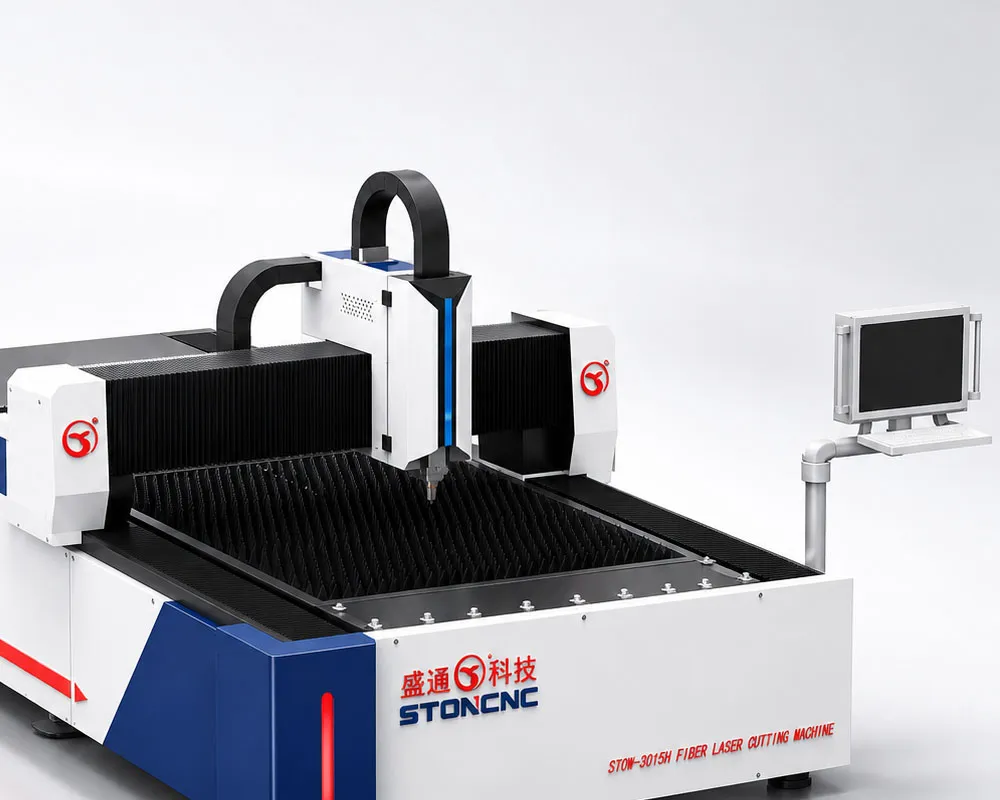

  • STON CNC Laser Cutting Machine catalog - scalable power options

    Scalable Power Options

    Laser power is configurable from 1kW to 60kW to match your material thickness range and cutting speed requirements, from thin gauge decorative panels to heavy structural plate.

Technical Specifications

Parameter Single Platform Exchange Platform
Available Machining Areas 3,000×1,500 / 4,000×1,500 / 4,000×2,000 / 6,000×2,000 mm 3,000×1,500 / 4,000×1,500 / 4,000×2,000 / 6,000×2,000 / 6,000×2,500 mm
Z-axis Travel 100 mm 100 mm
Positioning Accuracy (X/Y) ±0.05 mm ±0.05 mm
Repeatability (X/Y) ±0.05 mm ±0.05 mm
Max Positioning Speed 150 m/min 150 m/min
Kerf Width 0.1 mm 0.1 mm
Kerf Roughness (Steel) ≤6.3 μm ≤6.3 μm
Machining Accuracy ±0.1 mm ±0.1 mm
Loading / Unloading Manual or robotic (single table) Simultaneous cutting + loading/unloading (dual tables)
Best For Mid-volume production, job shops High-volume continuous production
Power Supply 3-phase 380V / 50Hz 3-phase 380V / 50Hz

Industry Applications

STON CNC sheet metal machinery catalog - appliances

Home Appliances

STON CNC sheet metal machinery catalog - electrical cabinets

Electrical Cabinets

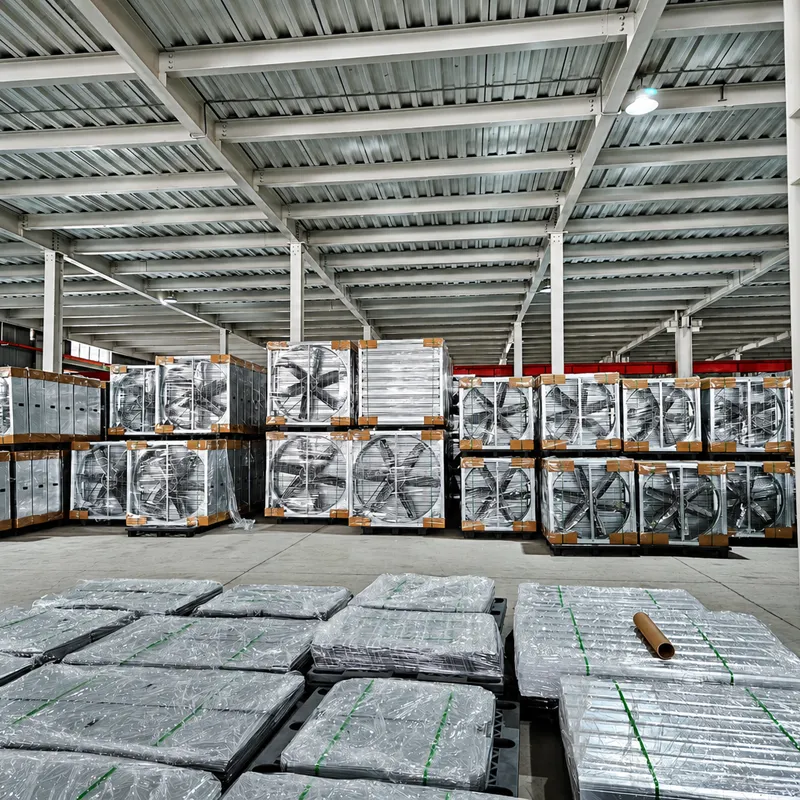

STON CNC CNC Press Brake catalog - ventilation

Environmental Ventilation

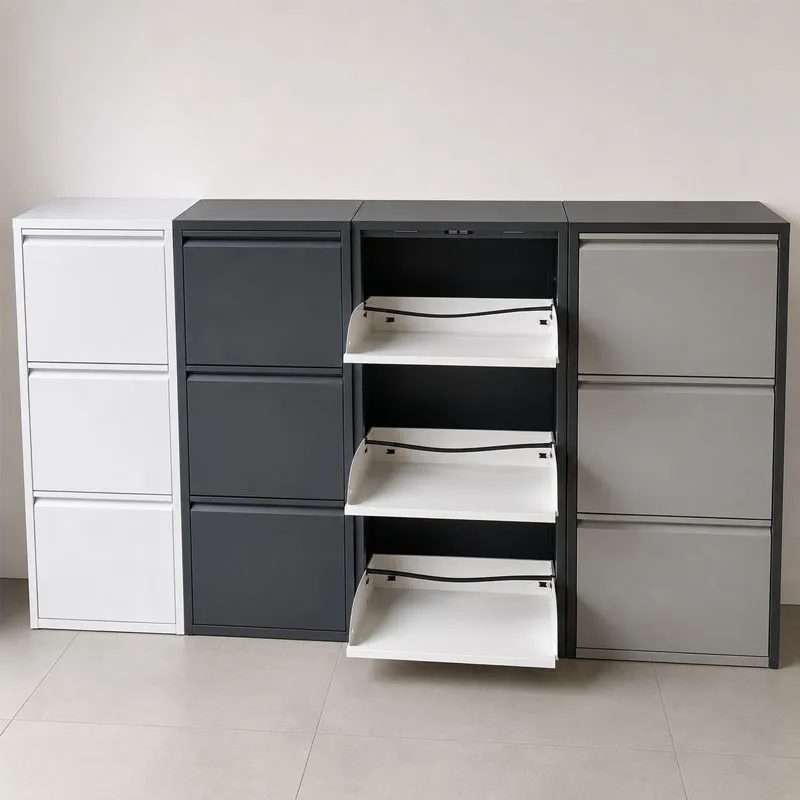

STON CNC CNC Press Brake catalog - metal furniture enclosures

Metal Furniture & Shelving
