Mechanical CNC Punch Press

Mechanical CNC Punch Press

The STON mechanical CNC punch press offers significant advantages such as energy efficiency, excellent stability, high tonnage capacity, and competitive pricing. It is equipped with 32 turret stations as standard, including 2 rotating stations, allowing for diverse operations such as punching and drawing.

The Mechanical CNC Punch Press combines the precision of computer numerical control technology with the reliability and durability of mechanical drive systems.

Inquiry Now

add to cart

··· STON Mechanical CNC Turret Punch Press ···

Model:STSK-JT30/STSK-JT50

Punching Force:30/50tons


ParameterUnitRemarks
ModelSTSK-JT30/STSK-JT50

Punching Force300(30)/500(50)KN(T)
Frame StructureO-Type Closed Frame

Max Sheet Size for Single PositioningX-Axis2500     Y-Axis1250/1500mm
Customizable to Non-Standard
Max Sheet ThicknessmmBased on Sheet Type
Max Punching Diameter in a Single Stroke
φ88.9

mm
Customizable to Non-Standard
Max Punching Frequency280 hpm
Max Punching Hits280
     hpm

Number of Control Axes4(X、Y、T、C)piece
Die TypeLong Guide 85 Series International Standard Die

Turret Station Distribution16A、11B、3C、2D(Including Rotary Stations1B、1C)
     Standard
Customizable to Non-Standard
Repositioning Cylinderset
Number of Clampspiece
Max Feeding SpeedX-Axis90         Y-Axis80m/min
Worktable StructureBrush and Universal Ball Composite Work Surface

Max Turret Speed40 rpm
Processing Precision±0.1
      mm

Max Load Capacity150 Kg
Total Power Consumption3Kw
Air Source Pressure0.55 Mpa
Power Supply380±5%V
Overall Dimensions5000/5500×5200×2100
mm


Overview

The STON mechanical CNC punch press offers significant advantages such as energy efficiency, excellent stability, high tonnage capacity, and competitive pricing. It is equipped with 32 turret stations as standard, including 2 rotating stations, allowing for diverse operations such as punching and drawing.

Learn more

Overview

Punching Demonstrations

Mechanical CNC Punch Press
Mechanical CNC Punch Press
Mechanical CNC Punch Press
Mechanical CNC Punch Press
Mechanical CNC Punch Press
Mechanical CNC Punch Press

Industry Applieation Cases

  • Furniture Side Panel
    Furniture Side Panel

    watch the process

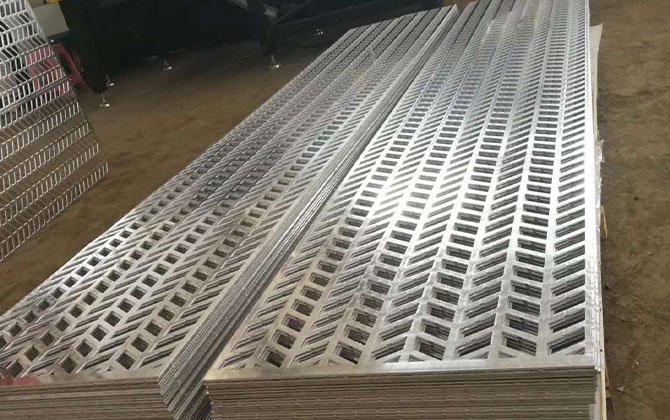

  • Garden Fence
    Garden Fence

    watch the process

  • Patterned Curtain Wall
    Patterned Curtain Wall

    watch the process

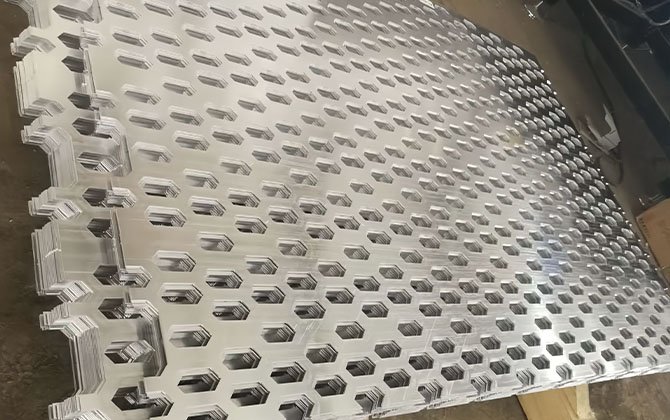

  • Showroom Building Facade
    Showroom Building Facade

    watch the process

Case Show

  • AC Unit Enclosure
    AC Unit Enclosure
  • BBQ grill
    BBQ grill
  • Building curtain wall
    Building curtain wall
  • Highway Sound Barrier
    Highway Sound Barrier
  • Air conditioner
    Air conditioner
  • Aluminum Cladding Panel
    Aluminum Cladding Panel
  • Cabinet Enclosure
    Cabinet Enclosure
  • Filing cabinet
    Filing cabinet

··· check your industry match ···

Component Introduction

  • 01.

    Key Features

    •High-efficiency Punching: Utilizes flywheel energy storage for consistent, stable impact, ideal for mass production.
    •Cost-effective: Low equipment cost, simple structure, easy maintenance, and low operational expenses.
    •Ultra-low Energy Consumption: As low as 3 kWh per hour, significantly reducing production costs.
    •Multi-station Turret: Supports rapid tool changes, reducing downtime and improving productivity.

    Key Features
  • 02.

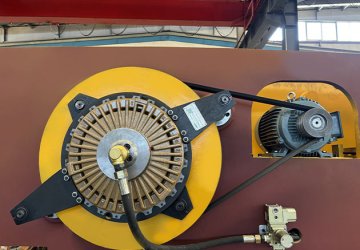

    Flywheel System

    •Powerful Output: Proprietary flywheel system offers consistent power, reducing motor load and ensuring high-speed continuous production.
    •Optimized Energy Efficiency: Flywheel design minimizes energy consumption while maintaining stable operation.

    Flywheel System
  • 03.

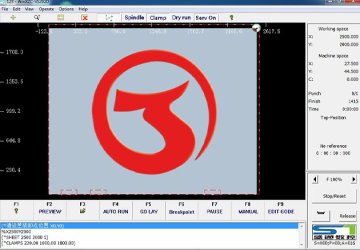

    CNC System

    •Precision Control: Employs pulse control technology for precise, consistent punch control.
    •Efficient Programming: Supports G-code and graphical programming for ease of use and error reduction.

    CNC System
  • 04.

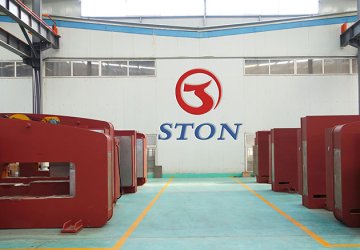

    Frame Structure

    •High-strength Design: "O"-type closed structure, with finite element analysis ensuring high stability and vibration resistance.
    •Precision Machining: The frame undergoes high-temperature annealing to eliminate internal stress. The entire structure is machined in a single fixture setup, ensuring optimal assembly accuracy.

    Frame Structure
  • 05.

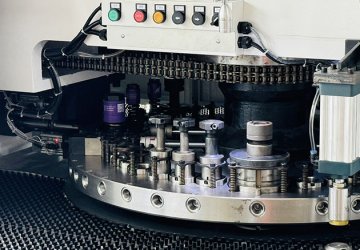

    Transmission Mechanism

    •Mechanical Transmission: High-precision system ensures stable punching and extends equipment life.
    •Easy Maintenance: Simple, reliable design for easy upkeep, improving long-term operational efficiency.

    Transmission Mechanism
  • 06.

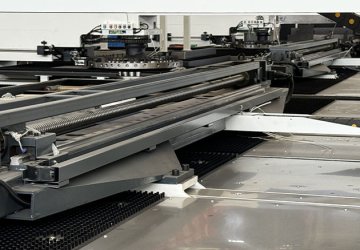

    Feeding System

    •High-precision Feeding: X, Y-axis guides and lead screws are integrated, ensuring precise material handling. Pneumatic clamps enhance stability.
    •Lubrication System: Multi-point automatic lubrication ensures sufficient lubrication, reducing wear.

    Feeding System
  • 07.

    Safety and Maintenance

    •Safety Design: Equipped with multiple safety features such as emergency stop buttons and fault detection systems for operator safety.
    •Simplified Maintenance: Optimized design reduces daily maintenance requirements, minimizing downtime and enhancing overall productivity.

    Safety and Maintenance
