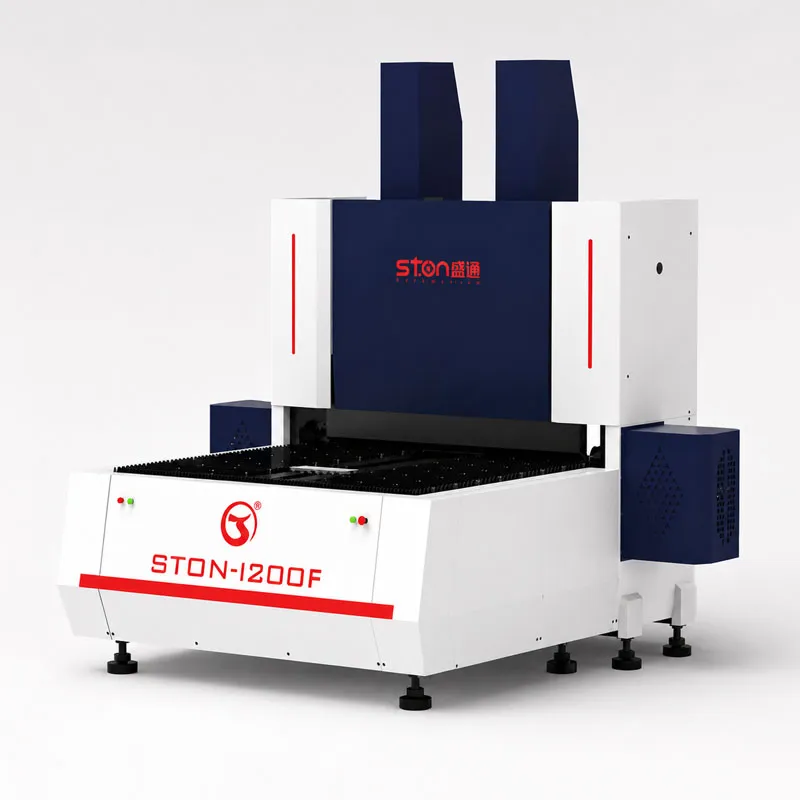

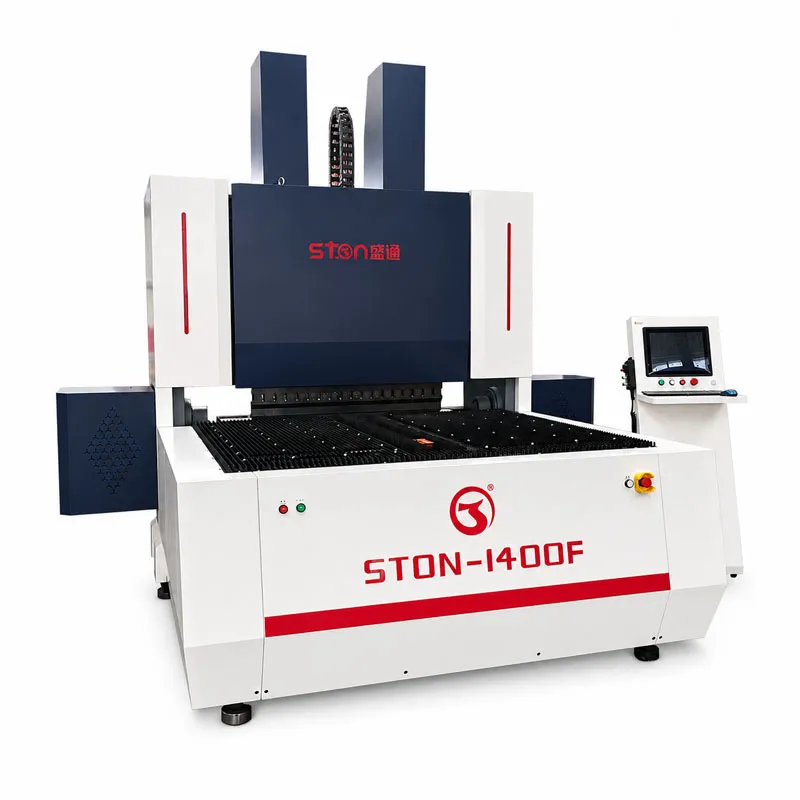

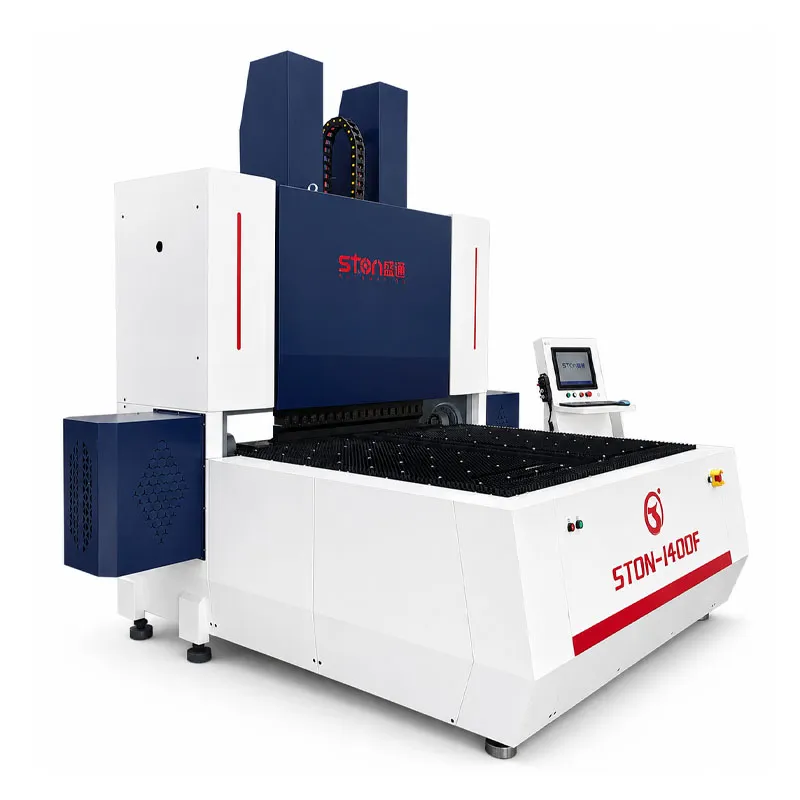

The Standard CNC Flexible Edge Bending Machine is designed for thin sheet metal bending with all-electric servo closed-loop control, suction cup feeding, and flexible edge forming. It is suitable for sheets with a thickness of 1.2 mm or less, supporting positive bending, positive + negative bending, arc forming, dead edge, and offset processes.
| Model | Maximum forming dimension (mm) | Maximum bending height (mm) | Minimum internal dimensions of the four sides (mm) | Minimum bending height (mm) | Bending process | Other processes |
| 1200 | 1200*1200 | 100 | 200*200 | 4 | Positive/Positive+Negative | Arc、Dead edge, offset |
| 1600 | 1600*1250 | 100 | 200*200 | 4 | Positive/Positive+Negative | Arc、Dead edge, offset |
| 2000 | 2000*1500 | 100 | 200*200 | 4 | Positive/Positive+Negative | Arc、Dead edge, offset |
1. Flexible Thin Sheet Forming
The machine is designed for sheets with a thickness of 1.2 mm or less, supporting positive bending, positive + negative bending, arc, dead edge, and offset forming.
2. No Traditional Mold Change Required
Complex shapes can be formed without frequent mold replacement, helping reduce preparation time and improve flexibility for mixed-batch sheet metal production.
3. Up to 25-Axis Coordinated Control
The all-electric servo closed-loop control system supports multi-axis concurrent linkage, enabling smoother and more coordinated bending movements.
4. 360° Suction Cup Feeding
The suction cup feeding method supports free 360° rotation, helping simplify loading, unloading, and workpiece positioning during edge bending.
5. Stable Mechanical Structure
Annealed structural components, grinding screws, wide roller guides, and imported bearings help improve operational stability and durability.
6. Automation-Ready Configuration
The machine can connect with gantry robots, robotic arms, and loading/unloading systems to support automated and unmanned production layouts.
The fuselage, feeding platform, and all structural components undergo annealing. The welded frame of the fuselage has undergone precise finite element analysis and employs the most stable structural design. High-precision industrial machine tool processing is performed, strictly adhering to Shengtong's processing standards and procedures.
It adopts an imported all-electric servo closed-loop control system, which supports up to 25 axes of concurrent linkage, and can smoothly realize various complex motion combinations. The overall working efficiency of the machine is industry-leading.
The lubrication pipeline is maintenance-free throughout the entire life cycle of the equipment, eliminating the risk of plastic lubrication pipeline bursting during the later stages of equipment use.
According to the actual bending torque requirements, the servo motor and driver are equipped with 1.3 times the torque, which enhances the overload capacity of the servo motor and driver during operation and avoids damage caused by the motor and driver working under full load for a long time.
Specifically designed for motor cabinets, it allows users to set the temperature and ensures stable operation of the electrical cabinet at a constant temperature.
Made of 42CrMo forged material, its high strength and hardness ensure a long tool life. The entire tool set is machined to guarantee tool consistency.
Depending on the operational needs of different equipment models, large-diameter ground lead screws are used in conjunction with imported Japanese NSK/NACHI bearings to ensure transmission accuracy. Wide roller guides are friction-resistant and have strong load-bearing capacity, which can effectively improve the stability of equipment operation.
High-precision slewing bearing: The two ends of the flap are hinged to the frame by double-row tapered roller bearings/cross roller bearings, with minimal radial/axial clearance, ensuring no loosening or shaking under long-term heavy loads.
The guide rail assembly is made with professional processes and adopts an adjustment block method, which can effectively ensure the parallelism and flatness of each guide rail, ensure smooth machine operation, prevent wear of the slider rollers due to external forces, and ensure durability.
It has abundant software and hardware interfaces, which can be connected to conventional gantry robots and robotic arms for loading and unloading. The specific selection can be made according to the actual needs of the user.
The device employs a suction cup feeding method, which has obtained a utility model patent. This method is simple, convenient, easy to operate, and safe. It can rotate freely 360°, simplifying loading and unloading operations and greatly improving the safety of operators.
All protruding parts are equipped with protective covers; a fully enclosed rear enclosure ensures production safety.
