CNC control system
It adopts an imported all-electric servo closed-loop control system with bus control. It can perform multi-axis concurrent linkage intelligent control to ensure smooth bending action and high mechanical operation coordination.

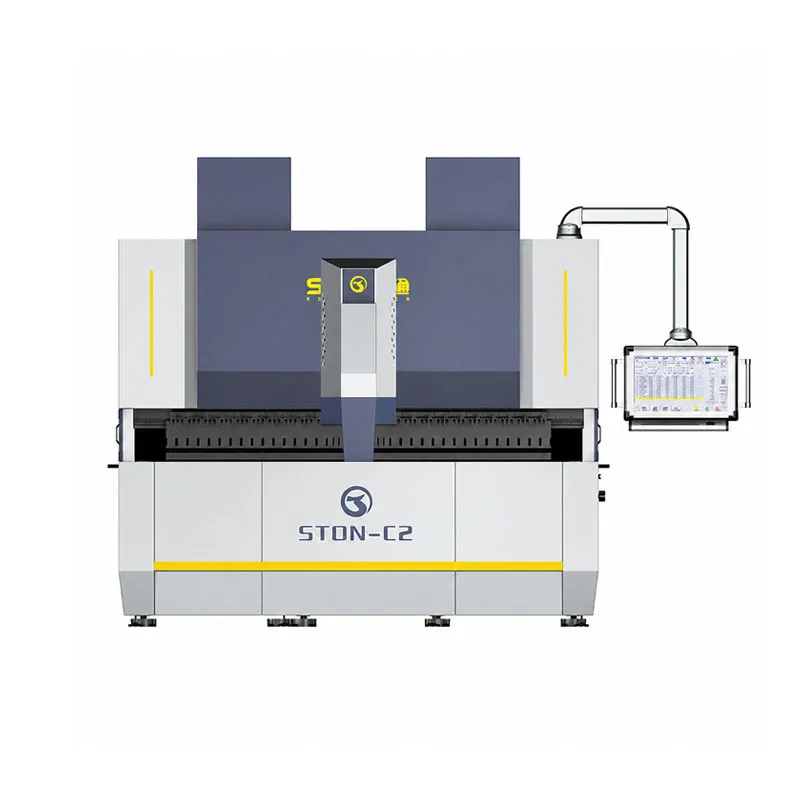

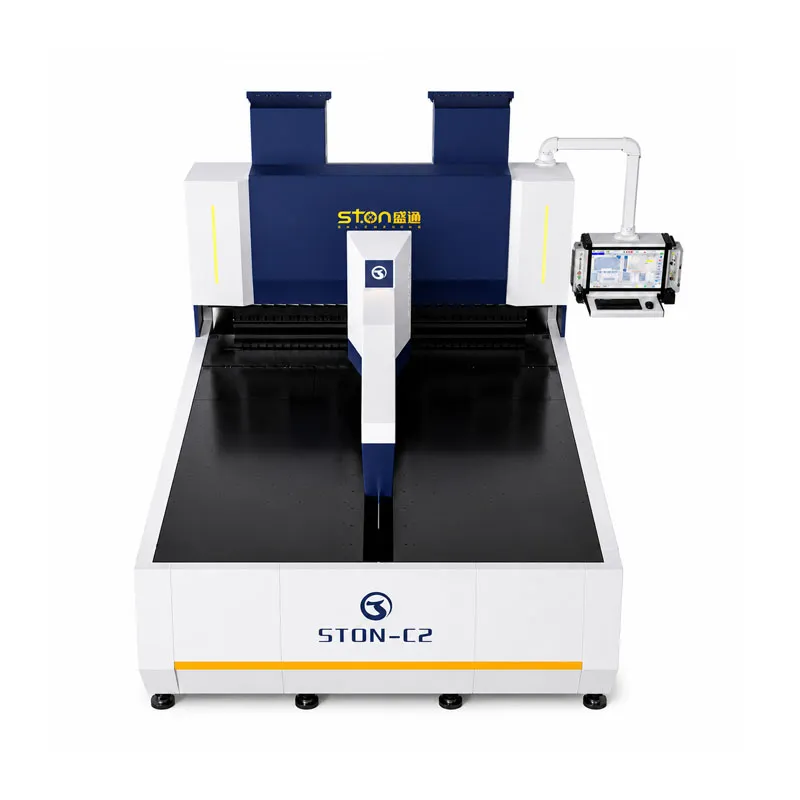

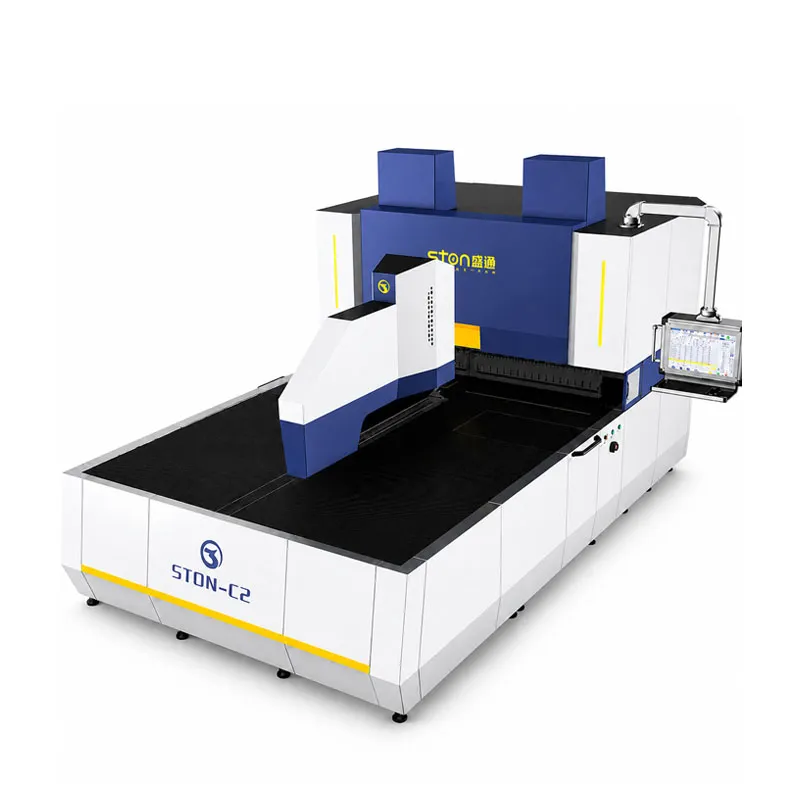

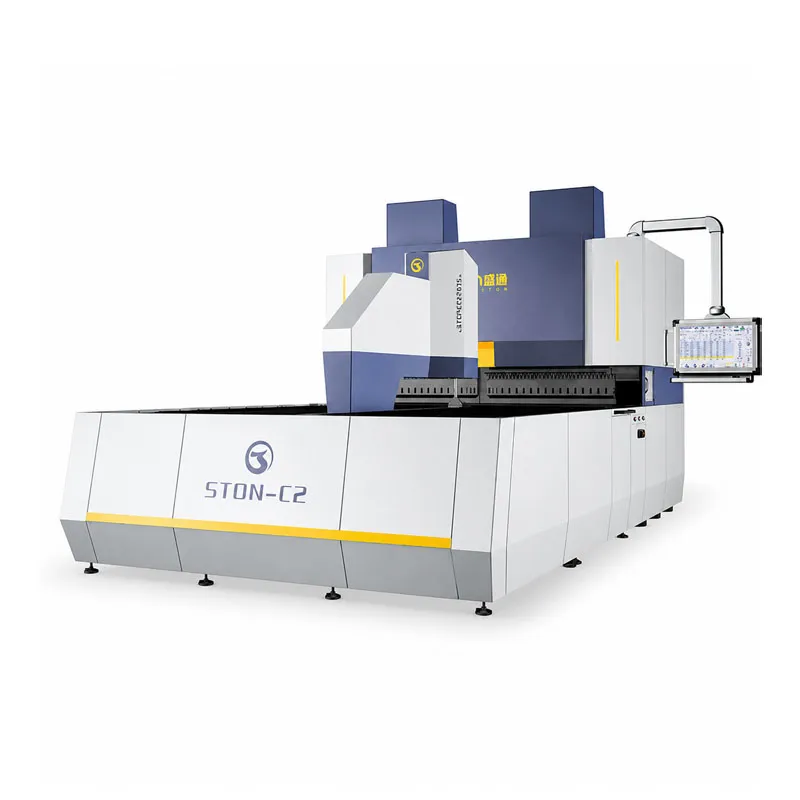

Automatic CNC Panel Bender (Press Arm Type) | STON-C2 Series
Plieuse de panneaux CNC (type à bras presseur)
Centres de pliage entièrement automatiques pour panneaux à angles multiples.
CNC panel bender (press arm type) designed specifically to solve that problem at the production level. It's not a general-purpose bending machine. It's a purpose-built automatic panel bender for manufacturers who produce panel-type sheet metal parts at volume — enclosures, cabinets, doors, frames, and similar formed parts — and metal furniture industries who need reliable, high-accuracy sheet metal bending in production environments.The machine brings together a rigid machine body, all-electric servo control, multi-axis linkage, and a disturbance compensation system to deliver consistent CNC sheet metal bending results without constant manual recalibration.
Obtenir un devis gratuit
Télécharger le catalogue PDF
- Description
Caractéristiques techniques
| Modèle | Max.bending size（mm） | Max.bending height（mm） | Maximum bending thickness at full bend | Standard model servo axis count | External dimensions (length × width × height cm) |
| A（1000）Welding | 1000*1000 | 170/300/400 | CR 1.5mm / SS 1.0mm | 15 | 425×160×255 |
| A+（1200）Welding | 1200*1200 | 170/300/400 | CR 1.5mm / SS 1.0mm | 15 | 430×180×255 |
| B（1400）Welding | 1400*1250 | 170/300/400 | CR 1.5mm / SS 1.0mm | 15 | 540×198×298 |
| B（1400）Casting | 1400*1250 | 170/300/400 | CR 2.0mm / SS 1.2mm | 15 | 450×206×290 |
| B+（1600）Welding | 1600*1250 | 170/300/400 | CR 1.5mm / SS 1.0mm | 15 | 560×218×290 |
| B+（1600）Casting | 1600*1250 | 170/300/400 | CR 2.0mm / SS 1.2mm | 15 | 462×226×290 |
| C（2000）Welding | 2000*1500 | 170/300/400 | CR 1.5mm / SS 1.0mm | 15 | 596×258×298 |
| C（2000）Casting | 2000*1500 | 170/300/400 | CR 2.0mm / SS 1.2mm | 15 | 558×270×310 |
| D（2500）Welding | 2500*1500 | 170/300/400 | CR 1.5mm / SS 1.0mm | 15 | 596×308×298 |
| D（2500）Casting | 2500*1500 | 170/300/400 | CR 2.0mm / SS 1.2mm | 15 | 615×308×310 |
| D+（2800）Welding | 2800*1500 | 170/300/400 | CR 1.5mm / SS 1.0mm | 15 | 626×338×298 |
| D+（2800）Casting | 2800*1500 | 170/300/400 | CR 2.0mm / SS 1.2mm | 15 | 630×338×310 |
| E（3200）Casting | 3200*1500 | 170mm | CR 2.0mm / SS 1.2mm | 18 | 684×380×320 |
| F（4100）Casting | 4100*1500 | 170mm | CR 1.2mm / SS 0.8mm | 18 | 430×180×255 |
Common parameters:
1. Minimum inner dimensions for four-sided forming: 140mm x 190mm;
2. Minimum dimensions for two-sided forming: approximately 140mm;
3. Bending angle: 0 – 180°;
4. Minimum bending height: 5mm; Angle accuracy: approximately ±0.5°/m; Straightness: approximately 0.2mm/m; Dimensional accuracy: approximately ±0.1mm/m;
5. Hardware requirements: Three-phase power 380V; Air source 0.6Mp.
Product Advantages
1. Multi-Axis Concurrent Control
15/18-axis servo closed-loop system completes positive bends, negative bends, Z-profiles, and box-forms in a single cycle — no manual repositioning required between bends.
2. Rapid Compensation Adjustment
Built-in compensation device corrects bending accuracy along the full bending line significantly faster than shim-type systems, reducing changeover downtime between product types.
3. Full Annealing on All Structural Parts
Every machine bed and structural component undergoes documented full annealing to eliminate internal stress, preventing dimensional drift over years of high-cycle operation.
4. All-Metal Lubrication Lines
Metal lubrication pipelines eliminate burst and crack risk common in plastic-tubing systems. Rated maintenance-free for the machine’s full service life.
5. Ground Lead Screw and Roller Guides
Factory-ground lead screws and pressure-block-mounted roller guides sustain ±0.1 mm dimensional accuracy and ±0.5°/m angular accuracy across extended production runs.
6. Automation Docking Interface
Standard docking port compatible with robotic arm, gantry, and truss-type loading systems. Supports future line automation upgrades without replacing the panel bender.
Présentation du processus de fabrication
Engineered for Excellence: Inside the STON Panel Bender
-
-
Compensation rapid adjustment device
It allows for convenient adjustment of bending accuracy and angle at every position along the entire bending line, meeting customers' high-precision bending needs. A significant advantage is the ability to quickly adjust bending accuracy after changing workpieces, with efficiency orders of magnitude higher than shim-type adjustments.
-
Metal lubrication lines
The lubrication pipeline is maintenance-free throughout the entire life cycle of the equipment, eliminating the risk of plastic lubrication pipeline bursting during the later stages of equipment use.
-
Grinding screw
The spindle is equipped with a ground lead screw as standard, and the spindle adopts heavy-duty roller guides. All spindle guides are installed using pressure blocks.
-
Bâti
We offer both cast iron and welded steel plate bed options to meet your diverse needs. All bed and structural components of both types undergo annealing to remove internal stress accumulated during manufacturing.
-
Custom knives
Based on customer needs, we customize pressing knives, folding knives, and automatic tool assembly tools. Starting from customer drawings and requirements, we can customize special tools according to the special characteristics of the workpiece process to meet the production and processing needs of different workpieces.
-
Auxiliary knife
Depending on the workpiece bending requirements, upper and lower auxiliary cutters can be selected, and the length of the auxiliary cutters can be customized to meet the needs of local small-scale bending of the workpiece.
-
Thick plate reinforced model
Specifically designed for thick plates, it can be equipped with a separate W-axis motor, or upgraded to a three-motor drive mode for the W/X/Z axes, providing powerful performance for bending. The machine body has also been upgraded accordingly, making it thicker and more stable.
-
Customized feeding
Customized and upgraded specifically for bending processes of special workpieces to meet the lifting requirements of the workpieces, with customized clamping methods, C-axis lifting, magnetic grippers and other configurations.
-
Electrical accessories
It uses Schneider Electric, Airtac pneumatic devices, Huichuan/Trio brand servo drives/motors, etc., all of which are top-tier domestic and international brands.
-
Automatic Tool changing
The high-end customized upgrade can meet the tool adjustment needs when switching between different workpieces, and can also meet the tool adjustment needs during the processing of special workpieces.
-
Automation and Smart Features
The system retains the automatic loading and unloading docking port, which can be matched with almost all brands of robotic arms and automated loading and unloading gantry on the market.
Applications industrielles
Electrical Cabinets and Switchgear Enclosures
Ventilation environnementale
Équipements de cuisine (acier inoxydable)
Metal Office Furniture and Filing Cabinets
Medical Equipment and Laboratory Furniture
Military and Defense
